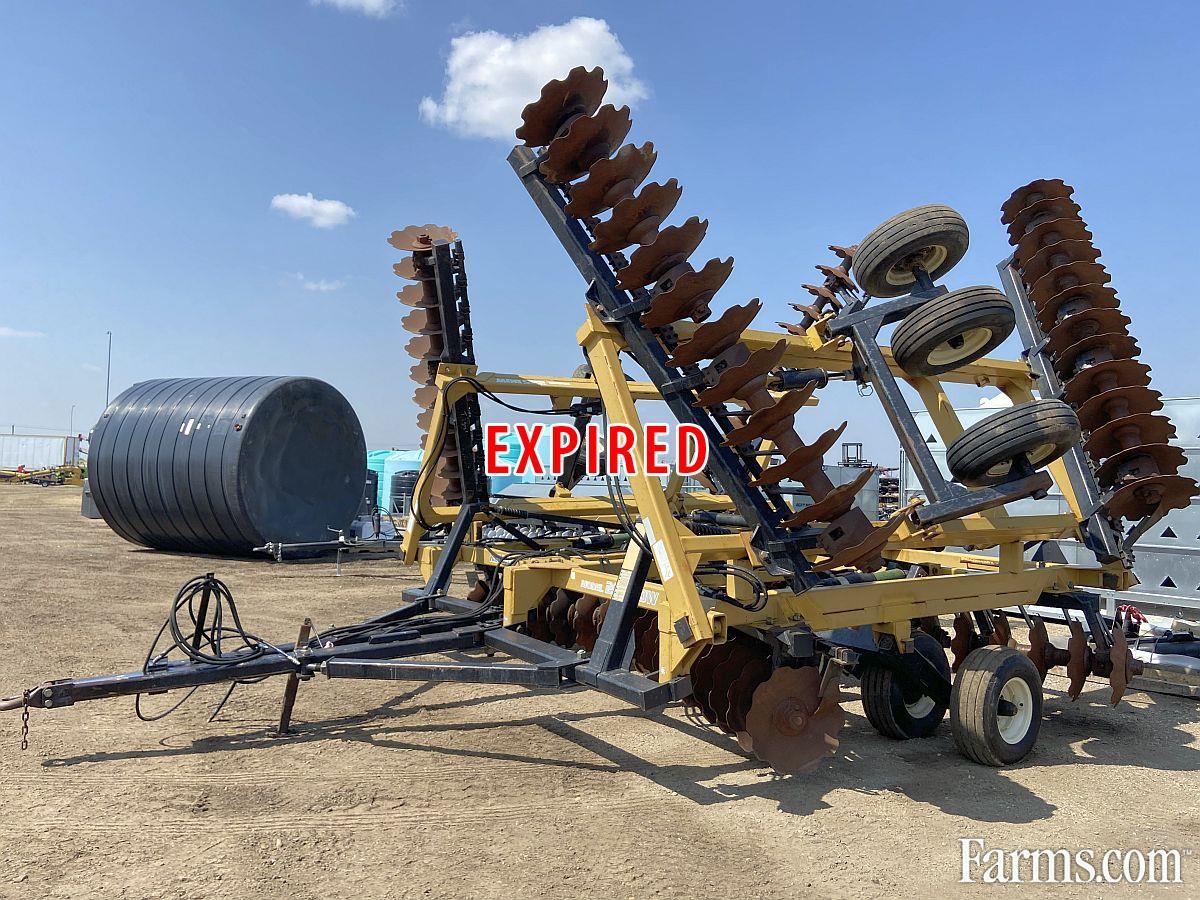

Kello-Bilt 225DOW - 38' Breaking Disc
It has notched blades front and back. Blades measure about 24.5" Front and 25" Back. Was not used a lot. Recent extensive repairs and welding fixes in shop.
- Transport Width: 21'
- Transport Height: 17'
- Weight: 26,938 lb. (12,219 kg)
- LBS Per Blade: 313
- Suggested Drawbar HP: 400+
This model features a four section design for maximum flexibility and weight distribution, with folding wings with narrow width for ease of transportation. Take care of crop residue, and hard dry soil with ease.Features of Kello-Bilt Tandem Discs:
Oil Bath Bearing:Back-to-back tapered roller bearings are used to reduce side sheer while operating a disc harrow. Sealed with Duo-Cone TM seals, the bearings are bathed in a 90W gear oil for friction-free life.
Welded Spacer Spool:Fabricated steel spacer spools, which won’t shatter or compress, and provide maximum durability in the toughest conditions.
Gang Shafts & End Washers:Made of high carbon alloy steel to eliminate stretch and premature failure
Disc Blades:V notched blades to cultivate hard soil
Bearing Standards & Wear Plates:Consisting of a minimum thickness of 3/8” rectangular tubing for maximum support.
Gang Bar:Fabricated as a single piece of steel for maximum stability. There are no U-Bolts to become stretched and loosened that can cause disc assemblies or bearing failure.
Heavy Duty Construction: Assembly is done with Grade 8 Zinc-Plated bolts and hardware, and constructed with 6” by 4” by 3/8” thick high strength steel tube. Frames are fully welded and reinforced to withstand acres of rough use.
Crafted In Canada:Manufactured in Red Deer County, Alberta.
